Garden Drainage & Soakaways Explained

A waterlogged garden is more than an inconvenience, persistent standing water damages lawns, kills plants, creates a breeding ground for mosquitoes, and can eventually threaten the structural integrity of paths, patios, and even your home’s foundations. The good news is that the majority of UK garden drainage problems can be resolved with the right solution at a reasonable cost.

Why UK Gardens Flood

The UK’s combination of heavy clay soils across much of England and Wales, high annual rainfall, and dense suburban development creates near-perfect conditions for waterlogging. Clay soil absorbs water slowly and holds it for days or weeks after rain. Compacted ground, from construction machinery, heavy foot traffic, or years of neglect, makes the problem worse. Poorly graded patios and driveways that slope toward the house rather than away from it direct runoff where you least want it.

Before investing in drainage solutions, it helps to understand whether your problem is:

• Surface water run-off from patios, roofs, or neighbouring land
• High water table, groundwater that rises after sustained rainfall
• Clay-pan waterlogging, water pooling above an impermeable subsoil layer
• Inadequate grading, a flat or wrongly sloped site that cannot shed water

Each cause has a different optimal fix.

Common Garden Drainage Solutions

Soakaways

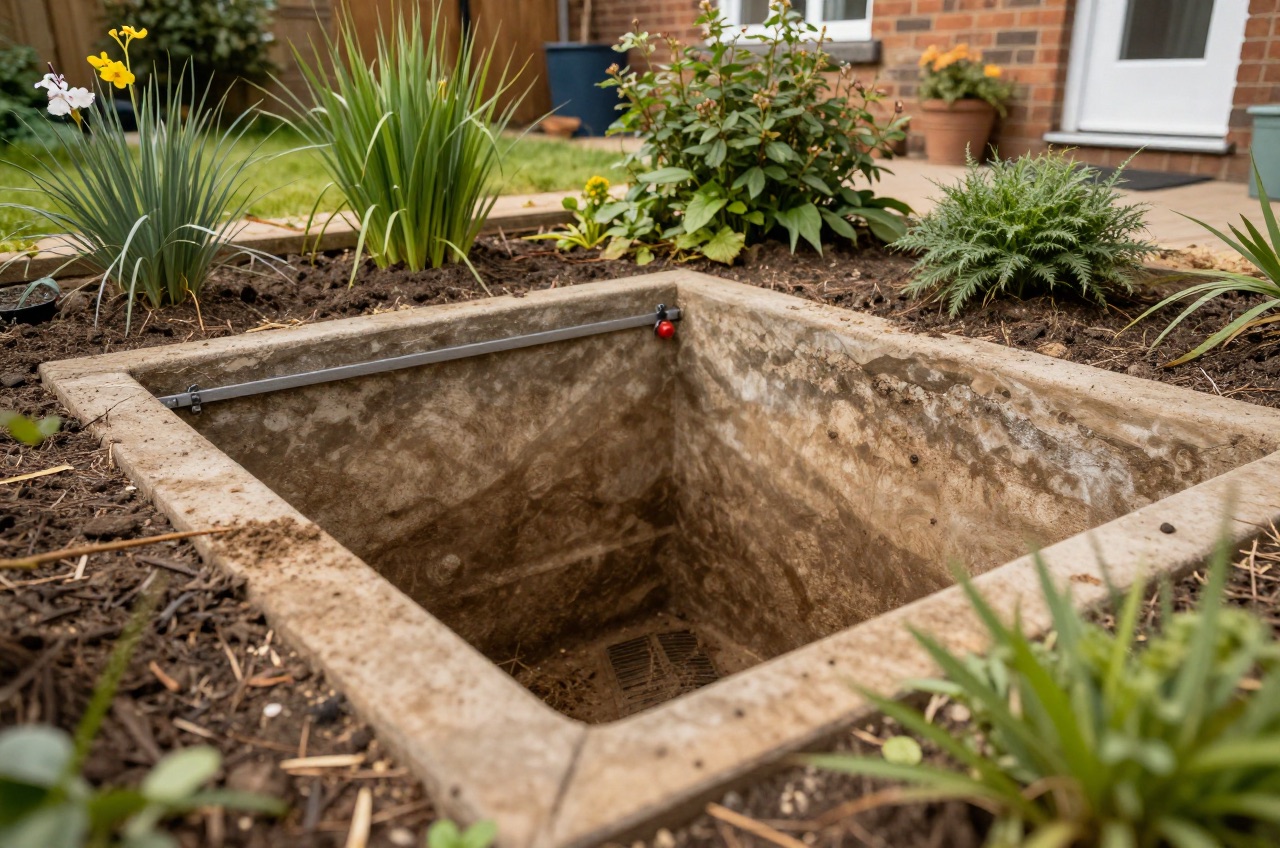

A soakaway is a buried pit filled with rubble, gravel, or a proprietary crate system (such as Aquacell or Graf cubes) that collects surface water and disperses it slowly into the surrounding soil. They are the most common and cost-effective solution for gardens with reasonably permeable subsoil.

When they work: Gardens with free-draining subsoil such as sand, gravel, chalk or sandy loam. They are not suitable on heavy clay or where the water table rises close to the bottom of the soakaway, which is why a percolation test comes first.

Sizing: Section 3 of Building Regulations Approved Document H gives guidance on domestic soakaways, which should be designed for a storm with a return period of once in ten years, testing storms of different lengths to find the one that needs the most storage.¹ For a small soakaway serving 25 m² or less, a design rainfall of 10 mm in 5 minutes may be assumed.¹ The storage the pit needs is the difference between the water flowing in during the storm and the water soaking away into the ground, so the size depends on how fast your subsoil drains; larger soakaways are designed to BRE Digest 365.

Positioning: Approved Document H says soakaways and other infiltration devices should not be built within 5 metres of a building or road, or in areas of unstable land.¹

French Drains

A French drain is a perforated pipe laid in a gravel-filled trench, typically 300–600mm wide and 600–900mm deep, that intercepts ground and surface water and channels it to a soakaway, watercourse, or drain. It is particularly effective along fence lines, at the base of slopes, or across a waterlogged lawn.

Typical cost: £40–£80 per linear metre for a basic French drain; £70–£120/m with a perforated pipe in geotextile sock. A 20-metre run across a rear garden costs roughly £800–£2,400 installed.

Key consideration: The pipe must fall consistently at 1:100 minimum (1cm drop per metre) toward the outlet. Flat or undulating sites make this difficult and may require a sump pump.

Channel Drains (Linear Drains)

Channel drains are surface-mounted drainage channels with grated tops, typically installed at the edge of driveways, patios, or across paths. They intercept runoff before it reaches the house or lawn.

Typical cost: £50–£120 per linear metre installed, including connection to existing drain. Plastic channels suit paths and patios; polymer concrete channels with heavier grates are the usual choice where cars will drive over them.

Lawn Drainage (Aeration and Slit Drains)

For waterlogged lawns where the underlying issue is compaction rather than high water table, aeration, either hollow-tine or slit aeration, can dramatically improve drainage without excavation.

• Hollow-tine aeration: £150–£400 for a typical garden, carried out by a groundscare contractor
• Slit drainage: Specialist machinery cuts narrow trenches 200–300mm deep, fills them with sharp sand; £500–£1,500 for a typical lawn; significantly improves drainage in clay soils

When to Connect to Mains Drainage

Where an area has separate public sewers, surface water must not go into the foul sewer without the sewerage company’s approval.² Part H of the Building Regulations also sets an order of priority for rainwater, with a sewer last:¹

1. A soakaway
2. A watercourse, where a soakaway is not reasonably practicable (you may need the landowner’s agreement, and an outfall into a river or stream can need consent from the Environment Agency or the lead local flood authority)
3. A sewer, where neither is reasonably practicable, with the sewerage company’s consent

Connecting a drain to a public sewer in breach of these rules, or before the notice period given to the sewerage company has run, is a criminal offence punishable by a fine.³

Signs Your Garden Drainage Is Failing

• Standing water more than 24 hours after rain
• Moss taking over the lawn
• Cracks in paths or patios (freeze-thaw damage from saturated ground)
• Damp patches appearing on ground floors or lower walls of the house
• Neighbouring properties with drainage works recently completed (groundwater levels can shift)

Choosing a Contractor

Garden drainage is unglamorous work but requires competence. When getting quotes:

• Ask for a percolation test before any soakaway quote is finalised, without it, the design is guesswork
• Confirm the contractor is familiar with Approved Document H3
• Check that any connection to existing drains will be signed off with building control if required
• Get a minimum of three quotes; prices vary significantly

Most garden drainage work does not require planning permission, but if you are near a watercourse or in a flood risk zone, check with your local authority and the Environment Agency before starting.
