Central Heating Design Basics

Most UK homes have a wet central heating system, a gas or oil boiler heats water, which circulates to radiators or underfloor heating pipes, giving up heat to each room before returning to be reheated. When designed well, the system heats every room evenly, the boiler runs efficiently, and energy bills stay low. When designed poorly, some rooms are too hot, others stay cold, and the boiler cycles on and off constantly, shortening its life. This guide explains the key principles of central heating design for homeowners extending, renovating, or having a new system installed.

System Types

Combi boiler system, the most common configuration in smaller UK homes. A combination boiler provides both central heating and instantaneous domestic hot water (DHW) without a separate hot water cylinder. Simple to install, compact, and easy to control. Works best where peak hot water demand is moderate (1–2 bathrooms).

System boiler with sealed system and cylinder, the boiler heats a sealed pressurised circuit and separately heats a hot water cylinder (usually an unvented cylinder, e.g. an Albion or Megaflo). Better suited to larger homes or properties with multiple bathrooms where combi flow rates would be insufficient. Requires a plant room or airing cupboard for the cylinder.

Open-vented (gravity) system, older layout with a feed-and-expansion (F&E) tank in the loft and a vented hot water cylinder. Still functional in older homes but being replaced on renovation. Operates at low static pressure; unsuitable for modern thermostatic shower valves without a pump.

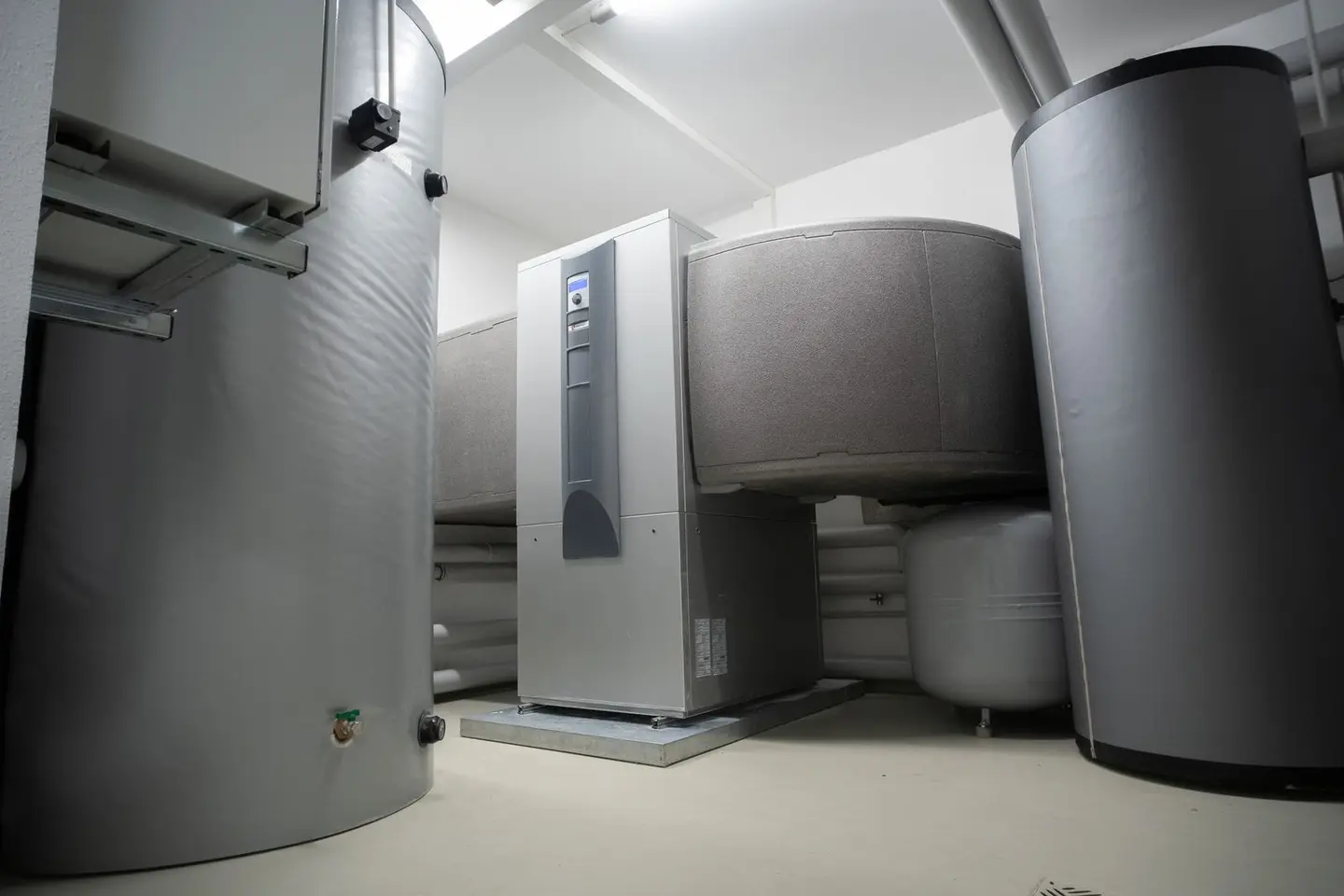

Heat pump system, functionally similar to a boiler-based sealed system but with lower flow temperatures (35–55 °C rather than 70–80 °C). Requires larger heat emitters (bigger radiators or underfloor heating) to compensate for the lower temperature differential. Approved Document L now asks for any newly installed or fully replaced wet heating system, whatever the heat source, to be sized to run at a maximum flow temperature of 55 °C or lower where that is feasible.¹

Pipe Layouts

Two-pipe system (most common): A flow pipe runs from the boiler to every radiator; a separate return pipe brings cooled water back. Each radiator connects between the two pipes. This means every radiator receives flow water at roughly the same temperature, giving consistent performance throughout the circuit. Standard for all modern UK installations.

One-pipe (ring main) system: A single pipe loops around the house, with each radiator teed off the loop. Water temperature drops around the loop, meaning radiators further from the boiler receive cooler water and must be larger to compensate. Rarely installed today but still found in some 1960s–1980s properties.

Microbore system: Uses 8 mm or 10 mm copper tube running to manifolds, from which individual radiators are connected. Reduces pipe sizes in walls and floors but requires careful commissioning; narrow bore is susceptible to blockage from sludge.

Underfloor heating (UFH) manifold system: Hot water is distributed via a manifold in each zone, running to 16 mm or 20 mm flexible pipes embedded in the floor screed. Flow temperatures are much lower (typically 35–45 °C at the manifold) and a mixing valve blends boiler water down to the correct temperature. UFH suits heat pumps well due to the inherently low flow temperature.

Room Heat Loss Calculation

Correct radiator sizing begins with a room heat loss calculation. This accounts for:

• Fabric losses, heat conducted through walls, floors, ceilings, windows, and doors (each element has a U-value in W/m²K; the worse the insulation, the higher the U-value)
• Ventilation losses, air change rate (typically 0.5–1.5 air changes per hour depending on room type)
• Design temperature difference, the difference between the design indoor temperature (commonly 21 °C for living rooms and 18 °C for bedrooms) and the design outdoor temperature for the location (around -3 °C is a common figure for much of England, lower in colder and more exposed areas)

Total heat loss in watts tells you the minimum radiator output needed for that room. Some designers add a modest margin where the heating runs intermittently.

Example, 4.5 m × 4 m lounge, semi-detached, double glazed:

• External wall: 2.1 U-value × 12 m² × 24 °C ΔT ≈ 605 W (uninsulated solid brick, an illustrative figure)
• Windows: 1.6 U-value × 3 m² × 24 °C ΔT ≈ 115 W
• Other losses (floor, ceiling, ventilation): ~400 W
• Total: approximately 1,120 W → specify a radiator rated ≥1,200 W at delta-T 50, or larger if the system will run at a lower flow temperature

Boiler Sizing

The most common mistake in heating system design is oversizing the boiler. An oversized boiler:

• Short-cycles (fires up briefly then shuts down repeatedly), reducing efficiency and increasing wear
• Operates less time in condensing mode, wasting the efficiency advantage of condensing boilers
• Costs more to buy than a correctly sized unit

The correct approach is to sum all room heat losses (the design heat loss) and choose a boiler whose heating output is close to that figure, with an allowance for reheating a hot water cylinder if there is one. Approved Document L says heating systems should be sized from a heat loss calculation and should not be significantly oversized.¹

A combi is the exception: its size is set mainly by the hot water flow rate you want, because it heats water as you use it, so a 3-bed semi with a design heat loss of 7–9 kW will often still have a 24–28 kW combi. Approved Document L asks that a combi be chosen so that its heating output can modulate down to the home’s typical heating load.¹

Hydraulic Balancing

Even with correct radiator sizing, a poorly balanced system will heat some rooms too much and others too little. Hydraulic balancing adjusts the lockshield valve on each radiator to restrict flow to the radiators nearest the boiler (which would otherwise grab too much flow), evening out temperatures across the system.

Balancing aims to give each radiator the temperature drop between flow and return that the system was designed for, so that every room reaches its target temperature at about the same time. Many installers skip balancing; pushing for it at commissioning is worthwhile.

Zone Controls

Building Regulations Part L sets out the controls a wet heating system should have. The main expectations in Approved Document L for homes are:

For a new heating system, or when a boiler is replaced in an existing home, each room should have its own thermostatic room control, such as a TRV or a room thermostat.¹ New homes with a floor area of 150 m² or more should have at least two independently controlled heating circuits.¹ Where hot water is stored in a cylinder, the hot water circuit needs its own time control and electronic temperature control.¹ Stored hot water should be kept at 60 °C or above to control Legionella.² Smart thermostats (Nest, Hive, tado) can act as the room thermostat, and one with automation and optimisation is one of the options for a combi boiler.

Weather compensation, adjusting the boiler flow temperature to match outside temperature, helps a condensing boiler run at lower return temperatures, where it is most efficient. When a gas combi boiler is installed in an existing home, Approved Document L asks for at least one extra efficiency measure, and weather compensation is one of the four options.¹

Expansion and Pressure

Sealed (pressurised) systems use an expansion vessel to accommodate the increase in water volume as it heats up. The vessel is pre-charged with air at the same pressure as the cold-fill system pressure (typically 1–1.5 bar). If the expansion vessel fails or loses its charge, pressure will rise to relief valve opening point (usually 3 bar) every time the system heats up, a common cause of pressure problems in older sealed systems.

The system pressure when cold should be around 1.0–1.5 bar, rising to 1.5–2.5 bar at operating temperature. Below about 0.5 bar most boilers will lock out; at about 3 bar the pressure relief valve will discharge.

Underfloor Heating vs Radiators

UFH retrofit is viable where floor levels allow the additional build-up, or where a lightweight mat system on existing subfloor can be used in conjunction with a suitable floor finish.

Common Design Mistakes to Avoid

• Undersizing radiators to save cost at installation, underperformance will persist for the life of the system
• Oversizing the boiler, costs more to buy and to run
• Fitting a new boiler onto an uncleaned system, sludge in old pipework can damage the new heat exchanger; have the system cleaned and flushed first (a power flush is one method)
• Omitting a magnetic system filter, a £60–£120 filter at the boiler return catches sludge before it reaches the heat exchanger and should be considered standard on all new and replacement boiler installations
• Skipping hydraulic balancing, leaves the system working poorly even if every individual component is correct
