Underpinning: When You Need It & Cost

Find out when a UK home needs underpinning, what causes subsidence, the different methods and what underpinning costs in 2026.

By The Renovation Notes Team · 6 min read · Updated 29 June 2026

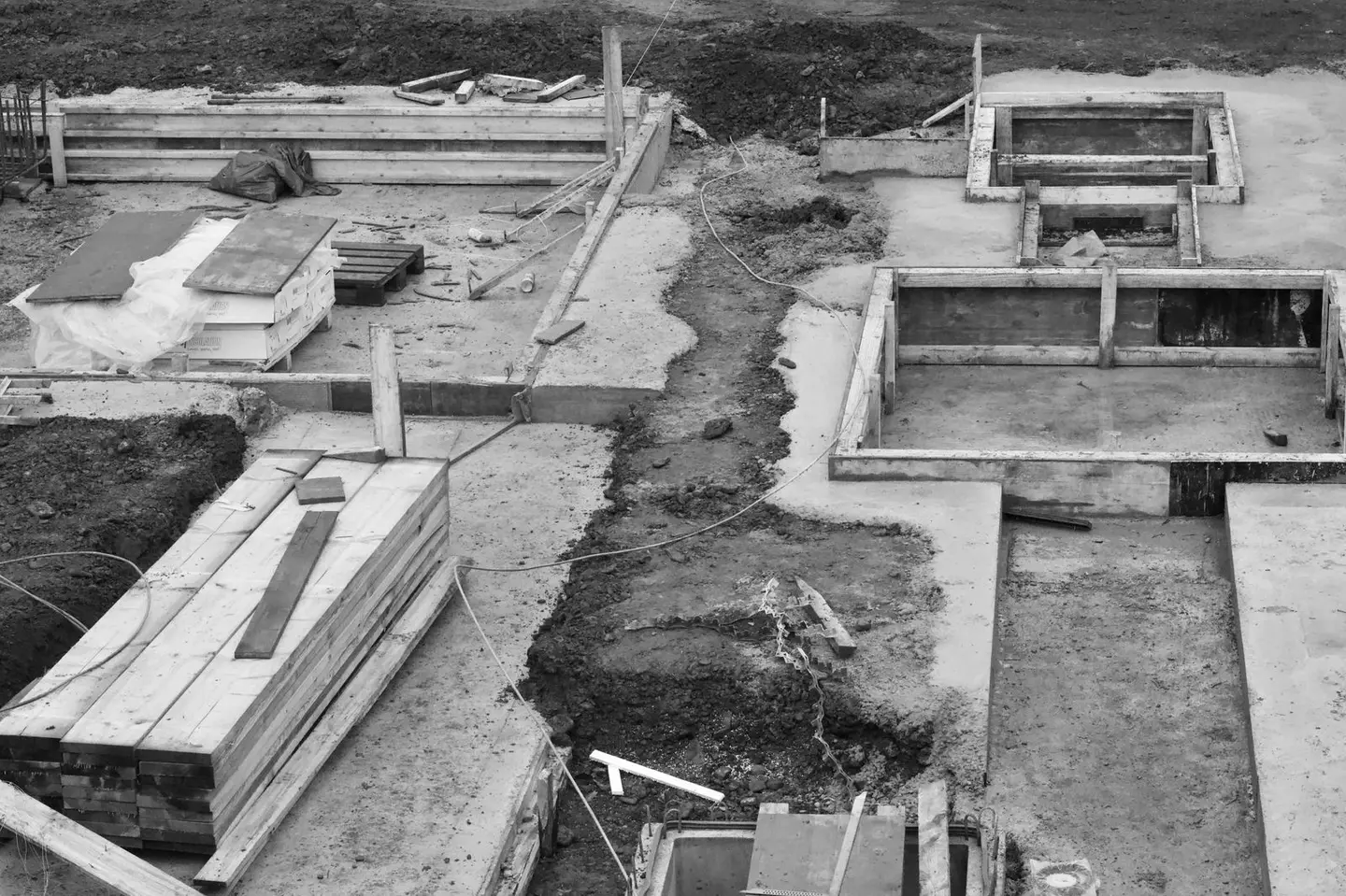

Aerial view of concrete foundations at a construction site, showing early building phases.

In short

Underpinning costs £1,500–£3,500 per linear metre of wall in the UK; it is required when foundation movement threatens structural integrity, and must always be preceded by professional structural investigation — never commission underpinning on the basis of cosmetic cracking alone.

Underpinning is the process of extending or strengthening a building’s foundation to a greater depth or breadth, so that it bears on more stable or load-bearing ground. It is one of the most disruptive and expensive structural interventions available — and also, in many cases, the only appropriate remedy for serious foundation movement.

The critical thing to understand is that underpinning is a treatment, not a diagnosis. Before any underpinning is commissioned, an independent structural investigation must establish the cause of movement. Treating the symptom (cracking) without resolving the cause (a clay shrinkage cycle, a leaking drain, tree roots) is a waste of money and may need to be repeated within years.

Why Do Foundations Move?

In the UK, the most common causes of foundation movement are:

1. Clay Shrinkage (Most Common)

Around 40% of England sits on shrinkable clay. During dry summers, clay loses moisture and shrinks; in wet winters it swells again. Foundations that are too shallow (typically pre-1950 properties with foundations only 450–600 mm deep) move with this seasonal cycle. After a sustained dry year the cumulative shrinkage can cause serious cracking.

2. Tree Root Extraction

Tree roots draw moisture from clay soil over a wide area. A large oak at 15 m distance from a property on clay can dry soil to a depth of 3–4 m. Removal of a tree can be equally damaging — the clay rewets and heaves.

3. Leaking Drains

Water from a leaking drain can soften or erode soil beneath shallow foundations. Clay soils swell; sandy soils wash out. Always investigate drainage before underpinning.

4. Inadequate Original Foundation Design

Pre-1900 buildings in the UK frequently have foundations of rubble, brick, or mass concrete only 300–500 mm deep — well above the level of seasonal moisture change in shrinkable clay.

5. Proximity of New Excavation

Excavation for a basement, new drain run, or adjacent development can undermine the soil support to existing foundations — which is why the Party Wall etc. Act 1996 requires neighbours to be notified before excavation.

Diagnosing Movement: Cracks Are Not Always Subsidence

The vast majority of cracking in UK homes is cosmetic — caused by thermal movement, normal settlement, or shrinkage of plaster or mortar. These do not require underpinning.

A building surveyor or structural engineer can assess crack severity using the BRE (Building Research Establishment) crack classification:

Category	Width	Description	Typical Remedy
0	< 0.1 mm	Hairline	Redecorate
1	< 1 mm	Fine	Fill and decorate
2	1–5 mm	Slight	Fill, redecorate
3	5–15 mm	Moderate	Investigation advised
4	15–25 mm	Severe	Structural investigation required
5	> 25 mm	Very severe	Major structural work likely needed

Category 3 and above warrants a structural engineer’s assessment. Even then, monitoring with crack monitoring pins over one to two full seasonal cycles (12–24 months) is often recommended before committing to underpinning — movement that appears severe in August may self-correct over winter.

Methods of Underpinning

1. Mass Concrete (Traditional) Underpinning

The most widely used method for domestic properties. Sections of the existing foundation are excavated in sequence, concrete is poured, allowed to cure, and the process moves along the wall.

Foundation is deepened, section by section, to a depth below the unstable soil (typically 1.0–2.5 m in clay)
Excavation done in carefully sequenced “pins” — typically every 1.2–1.5 m — to avoid undermining the wall at too many points simultaneously
Suitable for most masonry buildings without basements

2. Beam and Base Underpinning

A reinforced concrete beam is cast along the underside of the existing wall, transferring loads to widely-spaced reinforced concrete bases. Useful where the wall carries significant load or where access restricts traditional mass concrete work.

3. Mini-Pile Underpinning

Small-diameter piles (150–300 mm diameter) are drilled or driven to depth from within the building, then connected to the existing structure with steel or concrete brackets. Minimal excavation; more expensive but lower disruption and faster.

Suitable for: properties near active railway lines or roads where vibration is an issue; properties with restricted internal access; difficult ground conditions
Cost premium over mass concrete: typically 30–60%

4. Resin Injection

A less-invasive specialist technique — expanding resin is injected beneath the foundation through small-diameter tubes, compacting and strengthening the soil. Suitable for non-structural settlement on stable (non-clay) soils where the issue is soil compaction or voids.

Not suitable for clay shrinkage or active tree root problems
Cost-effective for localised, minor movement

Costs in 2026

Method	Cost per Linear Metre of Wall	Notes
Mass concrete underpinning	£1,500–£3,000	Most common; cost varies with depth
Beam and base	£2,000–£3,500	Higher engineering content
Mini-piling	£2,500–£5,000	Premium for low-disruption access
Resin injection	£1,200–£2,500	Site-specific; smaller areas only
Structural engineer’s investigation	£500–£1,500	Essential first step
Crack monitoring (12 months)	£300–£800	Pins + engineer report
Full residential underpinning (semi-detached, 2 affected walls, 20 m)	£30,000–£70,000	All-in including drainage investigation and monitoring

Building control notification is required for underpinning under the Building Regulations. A structural engineer’s design must be submitted and approved.

Insurance Considerations

Subsidence claims are covered by most UK home buildings insurance policies, but:

You must notify your insurer as soon as you believe subsidence is occurring
The insurer will commission their own structural investigation and may manage the remediation process
Claiming for underpinning creates a subsidence history on the property — which can affect future insurance premiums and mortgage availability
Properties with a previous subsidence claim must be disclosed to buyers

Some solicitors and surveyors treat previous underpinning as a significant flag when purchasing a property — always obtain a full structural engineer’s report and evidence of the cause having been resolved (e.g., drain repaired, tree removed).
