Loft Conversion with an Ensuite: Layout & Cost

Adding an ensuite to a loft conversion is the single most-requested upgrade, and for good reason: a loft bedroom without its own bathroom means trips down a flight of stairs in the night and morning competition for a shared bathroom. With good planning, a compact ensuite can be fitted into as little as 1.8 m² and adds genuine day-to-day value.

This article covers where to put the plumbing, which layouts work in typical loft spaces, what it costs, and what Building Regulations require.

Where to Put the Plumbing

Plumbing location is the most consequential decision in a loft ensuite. It determines layout options, cost, and long-term maintenance. The guiding principle is simple: keep sanitary ware as close to the existing soil and vent pipe as possible.

In a typical Victorian or Edwardian terrace, the soil stack runs vertically at the rear of the property, usually in or adjacent to the rear bedroom. The loft space directly above is therefore the most cost-effective ensuite location, branch drain runs can be short (under 3 m horizontal), maintaining the minimum gradient of 18 mm per metre recommended in BS EN 12056 and Approved Document H.¹

A 3 m horizontal run at 18 mm/m drop uses 54 mm of vertical fall. In a loft where the floor structural depth (joists plus decking) is typically 220–250 mm, this is achievable within the floor zone without any special measures.

Beyond 3 m from the soil stack: gravity drainage becomes awkward. Options are:

1. Long branch drain: with careful setting-out and joist notching or hangers, runs up to 5–6 m can work, but the fall requirement eats into available floor-to-ceiling height. Approved Document H says that where a branch pipe exceeds the length and slope limits in its Table 2 and Diagram 3, it should be ventilated to external air, to a ventilating stack or through an air admittance valve.¹
2. Macerator pump (e.g. Saniflo SaniAccess 3 or similar): the pump grinds waste and pumps it under pressure to the soil stack through small-bore pipework, so no gravity fall is required. The SaniAccess 3 discharges through 22, 28 or 32 mm pipework and can pump up to 5 m vertically or 100 m horizontally.² Saniflo rates its noise level at 46 dB(A).² Unit cost: £400–£850; installation £200–£400. Reliable for WC, basin, and shower if specified correctly. Requires a permanent electrical connection (usually a fused spur)
3. Relocate the soil stack: rarely done on conversions but occasionally the right answer on detached properties or where a rear extension is planned simultaneously. Quotes commonly run £1,500–£3,500 depending on height and route

Compact Ensuite Layouts

Wet Room (Minimum 1.8–2.2 m²)

A wet room, where the floor is tanked and drained without a separate shower tray or enclosure, is the most flexible layout for loft bathrooms. The sloped ceiling creates awkward geometry for standard shower enclosures with fixed door heights; a wet room eliminates this problem entirely.

A practical minimum wet room is 1,200 × 1,500 mm (1.8 m²), accommodating:

• Wall-hung basin: 450–500 mm wide
• Wall-hung WC: 350 mm wide × 500–550 mm projection
• Shower area: 900 × 900 mm zone with overhead or wall-mounted head

At 2.2–2.5 m², you gain a more comfortable WC-to-shower separation and space for a towel radiator (typically 500 × 700 mm).

The floor must be tanked with a waterproof membrane bonded to the structural floor, plus a linear or centre floor drain. The membrane is either a bonded sheet system such as Schlüter KERDI or a liquid-applied product such as Mapei Mapegum WPS, which Mapei describes as a liquid tanking membrane for bathroom and shower walls and floors.³ Structural floor deflection is critical: timber loft floors with longer joist spans flex more, and tiles and grout laid on a floor that flexes are prone to cracking. A structural engineer’s assessment of floor stiffness is prudent before committing to large-format tiles (600 × 600 mm+ tiles are more susceptible to cracking on deflecting substrates).

Shower Room (2.5–4.0 m²)

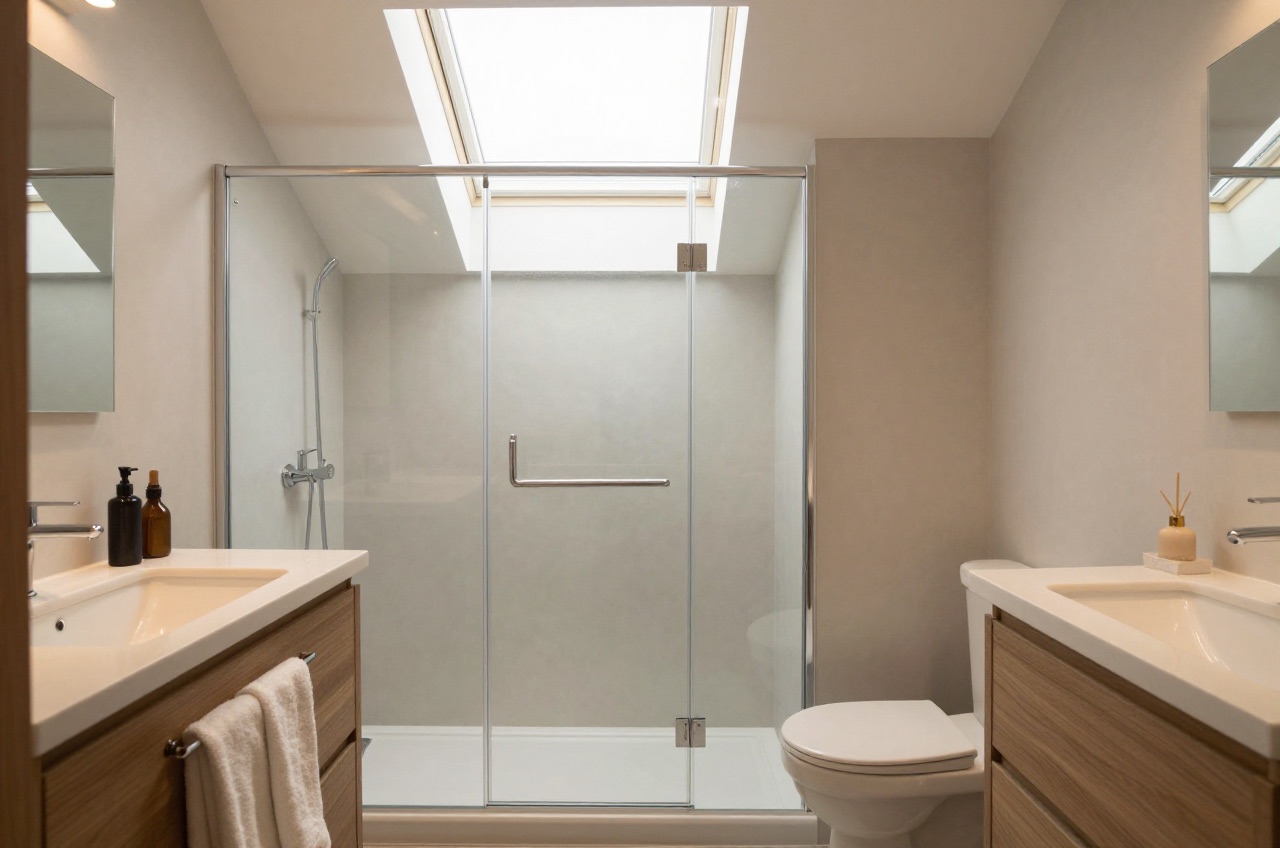

A slightly larger ensuite with a defined shower enclosure, basin vanity, and WC. This allows a 1,200 × 800 mm or 1,200 × 900 mm quadrant or rectangular tray, which many users prefer over an open wet room. Standard enclosure heights are 1,900–2,000 mm, check the ceiling height in the ensuite zone before specifying. If the slope restricts height to below 1,900 mm over the shower position, opt for a wet room or specify a bespoke frameless glass panel rather than a framed enclosure.

Full Bathroom (4.0–6.0 m²)

Achievable only in larger loft conversions (hip-to-gable, L-shaped dormer, or mansard). A full-height bath (typically 1,700 × 700 mm) can be set at an angle in the eaves zone if the eaves height is at least 1.0 m at the low side, the bath body is only 600 mm high. Many loft bathrooms use a freestanding bath positioned where the ceiling is highest (directly under a Velux or in the dormer zone), with the WC and basin toward the lower-ceilinged eaves zone where standing height is less critical.

Cost Uplift by Scope

Cost inclusions: structural floor assessment, tanking or tray installation, plumbing first and second fix, extraction fan, electrical spur, tiling (ceramic wall tile at roughly £10–£35/m² supply), sanitaryware (mid-range: Roca, Ideal Standard, Duravit entry level), towel radiator, and decoration. Macerator pump not included, add about £600–£1,250 if required (unit plus installation).

Ventilation and Building Regulations

An ensuite in a loft conversion must comply with Approved Document F (ventilation). Key requirements:

Mechanical extract ventilation: when a bathroom is added to an existing home, Approved Document F asks for either an intermittent extract fan of at least 15 litres per second (l/s) with a background ventilator of at least 5,000 mm² equivalent area, or a continuous extract fan with a high rate of at least 8 l/s.⁴ In a room with no openable window, an intermittent fan should keep running for at least 15 minutes after the room is vacated, which is why most loft ensuites use a fan wired to the light switch with a 15-minute overrun timer.⁴

Duct routing: the extract duct must terminate outside the building. The most practical route in a loft is through the dormer cheek, the gable wall (if accessible), or directly through the roof slope via a proprietary roof vent tile. Every bend and metre of duct adds resistance, and Approved Document F expects the fan to be chosen so that the complete assembly, as installed, still delivers the required extract rate.⁴ If the duct has to cross the cold roof void (between the new insulated ceiling and the outer roof covering), use insulated duct to limit condensation inside it.

Fan types and bathroom zones: inline duct fans (e.g. the Vent-Axia ACM range) are quieter than axial fans and work well with longer duct runs. Fans installed in zone 1 or zone 2 need to be rated at least IPX4.⁵ Zone 2 extends 600 mm beyond zone 1, but in a wet room with no shower tray there is no zone 2, because zone 1 simply extends to 1.2 m around the fixed shower head.⁶

Water supply: the Water Supply (Water Fittings) Regulations 1999 require every water fitting to be installed so as to inhibit damage by freezing, so hot and cold pipes must be insulated where they run through cold spaces (i.e. before entering the heated loft room).⁷ Use purpose-made pipe insulation, such as closed-cell foam lagging, on both hot and cold pipes in roof void sections.

Part L compliance: the ensuite must not create uninsulated thermal bridges. Any penetration through the insulated envelope (extract duct, pipe) must be sealed and insulated to limit heat loss. Approved Document L says the insulation should be reasonably continuous across newly built elements, because gaps increase heat loss and create a risk of condensation and mould.⁸

Small Ensuite Ideas

When space is genuinely tight (under 2.0 m²), a few specific measures help:

• Wall-hung sanitaryware: wall-hung WC (typically 500–550 mm projection vs 650–700 mm for floor-standing) and wall-hung basin (400–450 mm vs 550 mm for a pedestal) save 100–150 mm of projection, significant in a 1.8 m² room
• Combined shower and WC area: where the ceiling permits, a wet room arrangement with the shower head over the WC area allows even smaller footprints, common in Japanese bathroom design and increasingly used in UK micro-bathrooms
• Pocket door or barn door: a standard door (762 × 1,981 mm) swinging into a small ensuite eats valuable manoeuvring space. A pocket door (sliding into the wall cavity) or barn door (sliding on a surface-mounted rail on the bedroom side) recovers this entirely. Pocket door installation adds approximately £600–£1,200 over a standard door, including the frame modification
• Mirrored cabinet over basin: a recessed or surface-mounted mirrored cabinet (e.g. Keuco, Duravit, or basic Ikea Godmorgon) above the basin serves as both mirror and storage without adding floor footprint. Sizes from 400 × 600 mm to 600 × 700 mm suit most compact ensuites

A loft ensuite done well makes the new bedroom far more usable and more appealing to buyers. At current pricing, a well-executed £10,000–£12,000 ensuite is usually a sensible part of a full conversion budget.

The rules in this note are those that apply in England. Scotland, Wales and Northern Ireland have their own building standards and permitted development rights.
