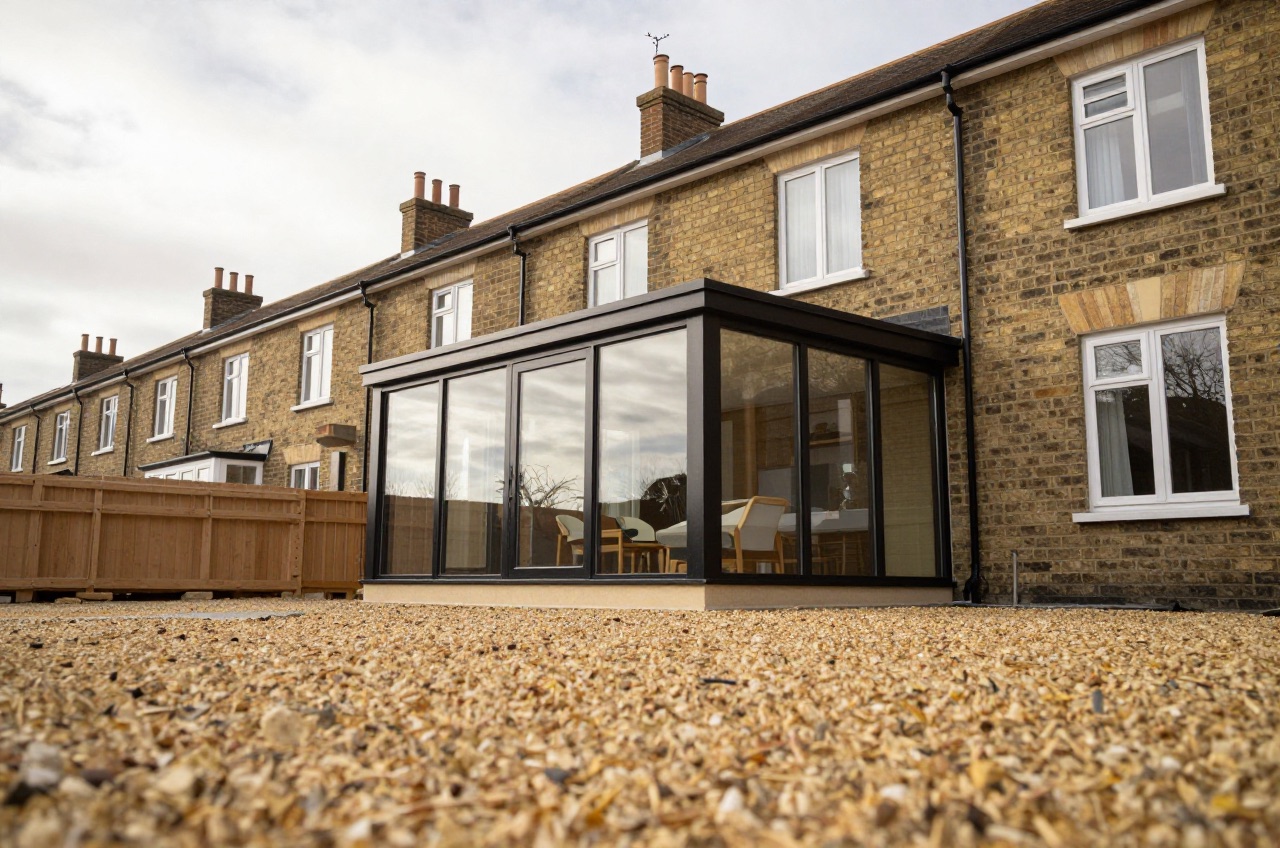

Glass box extensions and bifold-door rear additions have become a defining feature of contemporary UK domestic architecture. Done well, they dissolve the boundary between inside and garden in a way no solid extension can match. Done badly, they create a room that is unusable in summer and expensive to heat in winter. This guide covers both sides of that equation.
Glazing Options: From Bifolds to Full Structural Glass
Not every glazed extension is a structural glass box. There is a wide spectrum of approaches with very different costs, visual effects, and thermal performances.
Bifold and Sliding Doors in a Conventional Extension
The most common approach: a standard bricks-and-mortar or timber-frame extension with one or more walls of bifold or inline sliding doors. The structural work is conventional; the glazing system is a premium product installed into an opening formed by a steel or engineered timber beam.
Bifolding doors fold concertina-style and stack against one side (or both sides) of the opening. Inline sliding doors park one pane behind another without folding — cleaner sight lines when open, no protruding panels inside. For openings over 5 m wide, inline sliding systems generally perform better structurally and aesthetically.
Crittall-Style Steel Frame Extensions
The steel-framed window system popularised by Crittall in the early twentieth century has been revived extensively since 2015. Contemporary manufacturers include Crittall themselves, Vufold, and numerous bespoke fabricators. The narrow sightline profile (22–35 mm face width versus 70–100 mm for aluminium bifolding systems) gives a distinctive industrial-domestic aesthetic.
Steel profiles are thermally broken in most current systems, but their U-values (1.5–2.0 W/m²K whole unit) are worse than good aluminium alternatives. Used as an internal partition between a main extension and a garden room, or for internal glazed screens, they avoid the thermal penalty entirely while delivering the visual effect.
Structural Glass Extensions
A true glass box uses structural glass fins or patch-fittings to support large-format glass panels without visible framing. Glass walls, a glass roof, and frameless glass-to-glass corners are possible — the structural loads are carried by toughened laminated glass fins (typically 12 mm toughened + 12 mm toughened laminated, bonded with silicone) or by spider fittings anchored to a concealed steel structure.
This is expensive, specialised work. Very few general builders have experience with structural silicone bonding, and specifying it incorrectly is a safety hazard. Engage a glazing specialist or an architect with documented glass structure experience.
Cost Comparison
| Approach | Installed cost per m² of extension floor area | Notes |
|---|---|---|
| Conventional extension + aluminium bifolding doors | £1,800–£3,000 | Extension at standard cost; doors at £900–£2,000/m of opening |
| Conventional extension + inline sliding system | £2,000–£3,200 | Sliding system premium over bifolding; cleaner sight lines |
| Steel Crittall-style framed extension | £2,500–£4,500 | Bespoke fabrication; longer lead times (12–20 weeks) |
| Structural glass box (fins / patch fittings) | £3,000–£6,000 | Specialist contractor required; typically 10–25 m² |
| Frameless glass roof extension (patent glazing) | £2,200–£4,000 | Solar-control glass essential; overheating management critical |
For a 15 m² glass box extension at the rear of a Victorian terrace in London, budget £55,000–£90,000 all-in including structural engineer, glazing specialist, Building Regulations, and making good to the existing house. The same footprint as a standard brick extension would cost £35,000–£55,000.
Thermal Performance and the Overheating Problem
Glazed extensions face two conflicting thermal challenges: they lose heat in winter and gain too much heat in summer.
Winter heat loss is managed through glazing specification:
- Building Regulations Part L requires maximum U-value of 1.4 W/m²K for windows and doors (whole unit, including frame). Most quality aluminium bifolding and sliding systems achieve 1.2–1.4 W/m²K with double glazing in thermally broken frames.
- Triple glazing improves this to 0.8–1.0 W/m²K but adds 20–35% to glazing cost and increases weight (affecting structural sizing).
- Structural glass using a conventional double-glazed unit in a bonded frameless system typically achieves 1.2–1.5 W/m²K.
Summer overheating is the bigger practical problem in the UK. South- and west-facing glazed extensions routinely exceed 35 °C on sunny July afternoons without mitigation. The relevant tool for assessment is CIBSE TM59 (overheating in dwellings) and the simpler CIBSE TM52 criterion — if more than 1% of occupied hours exceed 26 °C internal temperature, the space is considered to overheat.
Mitigation options and indicative costs (for a 15 m² extension):
| Measure | Cost (installed) | Cooling effect |
|---|---|---|
| Solar-control low-E glazing (g-value ≤ 0.35) | Included in glass spec, +10–20% over standard | Reduces solar gain by 40–60% |
| External Venetian or pleated blind | £1,200–£3,000 per elevation | Very effective; blocks before glass heats up |
| Internal roller blind (solar fabric) | £600–£1,500 per elevation | Less effective; glass still absorbs and re-radiates |
| Automated roof vents (electric) | £800–£2,000 per vent | Enables stack-effect ventilation |
| Fixed horizontal brise-soleil (aluminium louvres) | £2,500–£6,000 | Effective for south-facing; check planning |
Solar-control glazing with a g-value of 0.35 (solar energy transmittance 35%) is the most cost-effective first measure — it reduces peak solar gains without requiring any ongoing operation and should be specified as standard for any south- or west-facing glass roof extension.
Planning Considerations
A glass box extension at the rear of a house typically falls under the same Permitted Development envelope as any other single-storey rear extension: maximum 4 m depth from the rear wall (3 m for semi-detached and terraced), maximum 4 m height (3 m at eaves within 2 m of the boundary). Materials must be of “similar appearance” to the existing house — in practice, planning authorities have accepted glass as a distinctive contemporary contrast, but this can depend on the local planning officer’s interpretation.
In conservation areas and on Article 4 estates, a full planning application is required regardless. Contemporary glazed extensions have been approved in conservation areas across the UK where they are clearly subordinate in scale and use high-quality materials. A pre-application advice meeting with the local authority (fee typically £150–£500 for householder schemes) before finalising the design is money well spent.
Any glazed roof structure over 10 m² that is not thermally separated from the house is subject to Building Regulations Part L — the qualifying conservatory exemption almost never applies to a glass box extension because the structural glass roof cannot meet the 75% roof translucency test while also being part of the habitable space of the house.
Design Inspiration and What Works
The strongest glass box extensions share certain characteristics:
- A simple geometry: A rectangular volume with one or two glazed elevations reads more confidently than a complex polygonal plan. Complexity drives up cost and creates thermal bridging risks at non-standard junctions.
- Concealed structure: Roof drainage, structural steelwork, and electrical conduit hidden within the fabric. Exposed downpipes and visible junctions undermine the clean effect.
- A clear threshold to the garden: A level or near-level (15 mm maximum) transition from interior finished floor to external paving, achieved with careful DPC detailing and a drain channel recessed into the threshold.
- Night-time effect: A fully glazed rear elevation facing a garden becomes a lit box visible from the garden after dark — plan internal lighting with this in mind. Warm (2700–3000K) downlights on a dimmer circuit work well; harsh cool-white LEDs read poorly through glazing at night.
A glass box or bifold extension done to a high specification is one of the most satisfying domestic additions possible. The key is engaging a structural engineer and glazing specialist early — their input shapes the design rather than ratifying it after the fact.
