Getting a bathroom layout right on paper before a single tile is moved saves thousands of pounds and weeks of rework. The most common planning mistake is sizing fixtures from catalogue dimensions and neglecting the clearance zones that Building Regulations and good practice require around them, only to find, after fitting, that the toilet door swings into the basin or that nobody can bend over the bath without hitting a wall.

This guide covers minimum dimensions, the clearances that should drive your layout decisions, electrical zone rules, and the Building Regulations that apply in England (Wales publishes its own versions of several Approved Documents).

Minimum Bathroom Sizes

There is no absolute minimum bathroom size in Building Regulations, but the practical minimum to fit a WC, basin and shower is around 1,800 × 1,600 mm (2.88 m²), and a WC, basin and full-size bath need nearer 1,700 × 2,200 mm (3.74 m²). Below this, compromises become severe.

Bathroom TypeMinimum Practical SizeComfortable Size
Shower room (WC + basin + shower)1,600 × 1,800 mm2,000 × 1,800 mm
Full bathroom (WC + basin + bath)1,700 × 2,200 mm2,400 × 1,800 mm

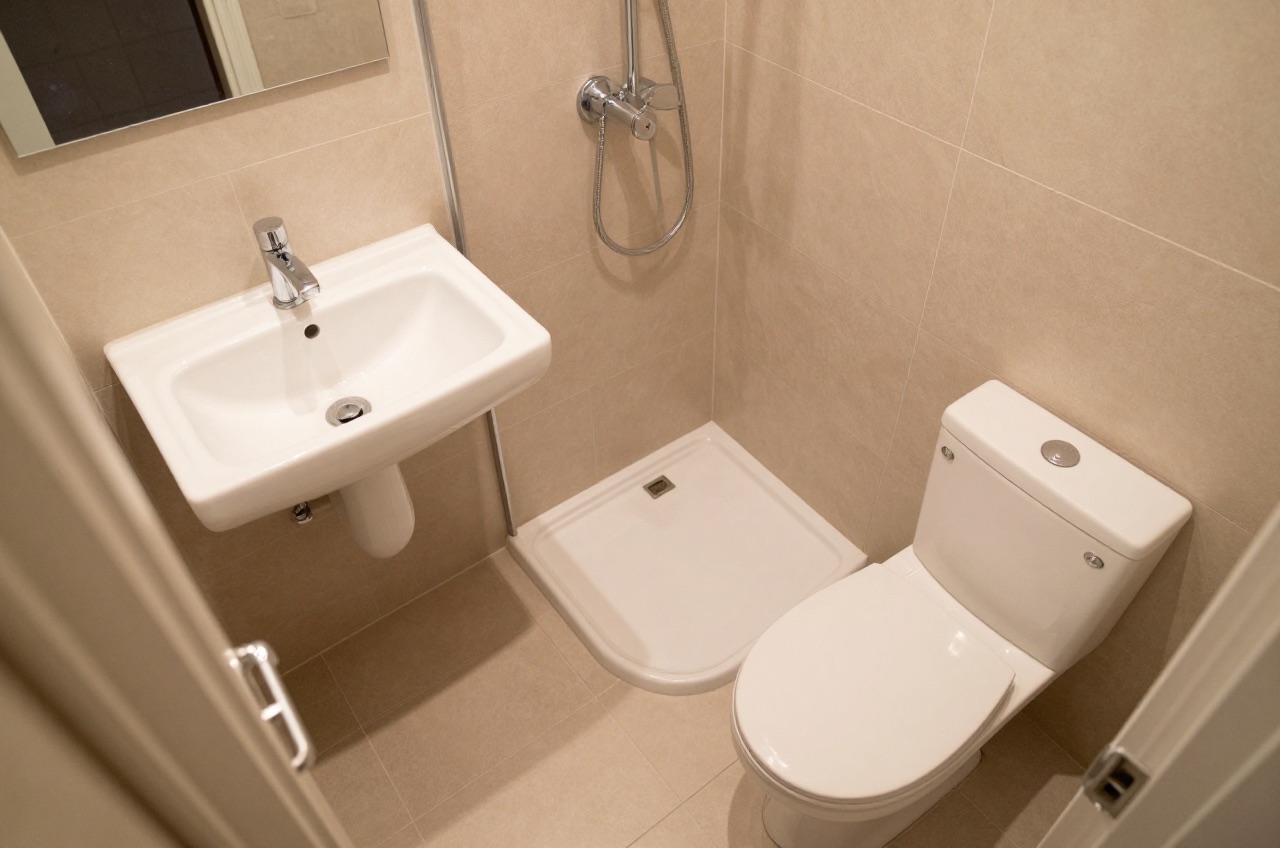

En suite (WC + basin + shower)1,400 × 1,800 mm1,800 × 1,800 mm
Cloakroom / WC only800 × 1,500 mm900 × 1,800 mm
Wet room1,200 × 1,200 mm (minimum shower area)1,800 × 1,800 mm+

Clearance Zones: The Hidden Space You Must Protect

Every fixture has a manufacturer dimension, and then an activity space in front of or beside it that should be kept clear. These drive usable layout more than the fixture itself. BS 6465-2 is the British Standard that gives recommendations on the space needed to install, use and maintain sanitary appliances in homes, and the figures below are typical planning allowances rather than legal minimums.1

FixtureStandard SizeTypical Frontal ClearanceSide Clearance
WC360–420 mm wide × 600–800 mm deep600 mm in front of pan200 mm each side
Basin400–700 mm wide700 mm in front100–200 mm each side
Bath1,500–1,800 mm × 700–750 mm700 mm along one long side-
Walk-in shower900 × 900 mm minimum700 mm in front of entry-
Shower enclosure (door swing)VariesDoor must clear 700 mm-

Approved Document M (Access to and Use of Buildings) sets access standards for new dwellings, including clear space around the WC, with the optional M4(2) and M4(3) standards going further.2 They do not apply to refitting an existing bathroom, but they are good targets for any renovation.2

Common Layout Configurations

The Linear Layout

All fixtures along one wall, most space-efficient for narrow rooms (1,400–1,600 mm width). WC at one end, basin in the middle, bath or shower at the other. Door at the bath end.

Best for: narrow en suites, terrace house bathrooms with a restricted width.

The L-Shape Layout

Fixtures on two adjoining walls. Typically bath along one wall, WC and basin on the adjacent wall. The corner can house storage.

Best for: square-ish rooms (1,800 × 1,800 mm+), family bathrooms.

The U-Shape Layout

Fixtures on three walls. Less common in domestic settings but allows a freestanding bath in the centre and WC/basin/shower on three walls.

Best for: large bathrooms (2,400 × 2,400 mm+), master en suites.

The Wet Room

No shower tray, the entire floor is tanked and falls to a linear or point drain. Needs a tested tanking system under the tiles (e.g., Schluter Kerdi or Wedi board) and a floor laid to fall towards the drain so that water does not pond. LABC Warranty, for example, asks for a fall of between 1:80 and 1:100 to the drainage point; follow the figure your tanking and drain makers give.3

Structural consideration: a wet room floor built up with a screed to form the falls can be much heavier than a shower tray. In upper-floor bathrooms, check the floor joists can carry the extra load; a structural engineer’s opinion is worthwhile for rooms over 4 m².

Electrical Zones in Bathrooms

BS 7671 (the IET Wiring Regulations) divides the space around a bath or shower into zones 0, 1 and 2, with zone 2 extending 600 mm beyond zone 1; the rest of the room is outside the zones.4

ZoneLocationPermitted Fittings
Zone 0Inside the bath or shower basinIPX7 rated fittings only (submersible)
Zone 1Above bath/shower to 2,250 mmIPX4 minimum; only fixed equipment made for the location, such as a shower unit or fan
Zone 2600 mm horizontally beyond zone 1IPX4 minimum; standard voltage allowed
Outside zonesEverywhere elseNormal fittings; sockets only 2.5 m or more from zone 1

Fixed equipment in zones 1 and 2 needs protection of at least IPX4, or IPX5 where water jets may be used for cleaning.5

Key rules:

  • Standard 13A sockets are allowed only at least 2.5 m horizontally from the edge of zone 1, which rules them out in most UK bathrooms.4 Shaver supply units (BS EN 61558-2-5) can go in zone 2 where direct spray is unlikely, or outside the zones.6
  • Switches inside the bathroom must be pull-cord type or, if wall-mounted, must be outside Zone 2.4
  • RCD protection (30 mA, by an RCD or RCBO) is required for all circuits in or passing through the bathroom.6
  • Notifiable work under Part P means a new circuit, a consumer unit replacement, or an addition or alteration inside the special location, which runs from finished floor level to 2.25 m and 0.6 m out from the edge of the bath or shower tray, or 1.2 m from the shower head where there is no tray. Work outside that zone is not notifiable, though it still has to comply.7

Ventilation Requirements

Approved Document F sets these standards for new homes and for a bathroom added to an existing home:

  • Minimum 15 litres/second intermittent extract rate for a bathroom8
  • Minimum 6 litres/second for a WC-only room8
  • Extract ventilation must discharge to outside (not into a loft void)8
  • Internal doors need a gap for replacement air, equivalent to a 10 mm undercut on a standard 760 mm door8

When you refit an existing bathroom, any existing extract fan should be kept or replaced.8 If the room had no ventilation system before, you do not have to add one, although a fan is still sensible in a bathroom.8

Humidity-controlled fans (which run until the moisture level drops, not just for a timed period) are strongly recommended in UK bathrooms to prevent mould growth.

Water Efficiency: Part G

Approved Document G’s water efficiency limit applies to new homes and to homes created by a change of use, not to refitting a bathroom in an existing home:

  • Estimated water use must not exceed 125 litres per person per day, or 110 where a planning condition applies the tighter optional requirement (common in water-stressed areas)9
  • Separately, the Water Supply (Water Fittings) Regulations 1999 cap any single WC flush at 6 litres10
  • Approved Document G’s simpler fittings approach assumes 6/4 litre dual-flush WCs and 10 litre/minute showers for the 125 litre target, and 4/2.6 litre WCs and 8 litre/minute showers for the 110 litre target9

Layout Tips from Experience

  1. Put the WC furthest from the door if possible, it preserves modesty when the door opens.
  2. Locate the basin near natural light (or under good artificial light) for shaving and makeup.
  3. Plan towel rail positions before fixing radiator brackets, they need to be on the pipework circuit, not just plugged in as decorative items, to provide meaningful heat output.
  4. Allow for a linen or toiletry cupboard in the layout even at the planning stage, fitted storage in a bathroom dramatically improves usability.
  5. Fix the bath before tiling the walls, the bath lip must go under the wall tile, not overlap it, for a watertight seal.
  6. Do not position the shower head opposite the door. When the door opens, you will spray the floor outside.

Budget Guide

Bathroom TypeBudget RefurbMid-RangePremium
Cloakroom (WC + basin)£1,500–£2,500£3,000–£5,000£5,000–£10,000
Shower room£3,000–£5,000£5,000–£9,000£9,000–£18,000
Full family bathroom£4,000–£7,000£7,000–£14,000£14,000–£30,000
En suite£3,500–£6,000£6,000–£12,000£12,000–£25,000

These figures include labour (tiler, plumber, electrician) and mid-range sanitaryware. They exclude structural alterations, underfloor heating, or bespoke cabinetry which add materially to cost.

References (10)

Figures in this note were checked against the sources below on 2 October 2026. Superscript numbers in the text point to them. Every source the site cites, by topic.

  1. 1technicalstrongBSI, a standard.RN-XEZK0GBS 6465-2:2017, in effect 31 July 2017, prepared by Technical Committee B/209 General building codes, current. It supersedes BS 6465-2:1996, which is withdrawn. It gives recommendations for the space required around all sanitary appliances so they are convenient in use and can be maintained and cleaned, which is the source for activity space and clearance dimensions in front of a WC, basin, bath and shower. It is one of a suite of four: Part 1 scales of provision, Part 3 selection and installation, Part 4 public toilets. As a code of practice its recommendations are guidance rather than specification, so a claim should be worded as recommended clearance, not a legal minimum.
  2. 2technicalvery strongMinistry of Housing, Communities and Local Government.RN-5IVIKFParagraph 1645 of the M4(2) guidance requires a minimum 1,200 mm clear space in front of and between all kitchen units and appliances in living, kitchen and eating areas. Wall switches, socket outlets, stopcocks and controls must have their centre line between 450 mm and 1,200 mm above floor level (Diagram 1.5), consumer units are mounted with switches 1,350 to 1,450 mm above floor level, and boiler timer controls and thermostats between 900 mm and 1,200 mm. Communal approach routes and flights need a minimum clear width of 1,200 mm and every landing a minimum 1,200 mm clear of any door swing. Handrail guidance is measured 450 mm above the pitch line of the treads.
  3. 3technicalvery strongLABC Warranty, guidance.RN-JI9X61LABC Warranty technical guidance on wet rooms: floor falls must prevent ponding, with falls around 1:80 to the drainage point.
  4. 4technicalstrongNICEIC, guidance.RN-8VV8NHNICEIC's householder guide to BS 7671 bathroom rules. It defines zones 0, 1 and 2 and covers sockets, shaver sockets, switches and RCD protection.
  5. 5technicalstrongThe IET, guidance.RN-76NYWBThe IET's technical article on Section 701 of BS 7671, locations containing a bath or shower. Explains the zones, 0, 1 and 2, what equipment and IP rating is permitted in each, the supplementary bonding rules and where a socket may and may not go. This is the source behind every statement about what can be installed near a bath, and it is written by the IET's own chief engineer answering the questions their helpline actually receives.
  6. 6technicalfairElectrical Safety First, guidance.RN-O10H4QElectrical Safety First's consumer advice on bathroom electrics. It states the 2.5 m socket rule, the shaver unit exception and that all bathroom circuits need RCD protection.
  7. 7technicalvery strongMinistry of Housing, Communities and Local Government.RN-JYJ3I5The document that decides what electrical work a homeowner may legally do themselves, and the exact list of notifiable jobs. Regulation 12(6A), reproduced at paragraph 2.5, makes only three things notifiable: the installation of a new circuit, the replacement of a consumer unit, and any addition or alteration to existing circuits in a special location. Regulation 12(9) defines special location as, in a room containing a bath or shower, the zone extending vertically from finished floor level to 2.25 metres (or the shower head position if higher) and horizontally 600mm from the edge of the bath tub or shower tray. Paragraph 2.7 states that all other electrical installation work is not notifiable, namely additions and alterations to existing installations outside special locations, and replacements, repairs and maintenance anywhere. Paragraph 2.8 gives worked examples: a built-in cooker is not notifiable unless a new cooker circuit is needed, and connecting an electric gate or garage door to an existing isolator is not notifiable but running a new circuit from the consumer unit to that isolator is. Paragraph 2.2 confirms Part P reaches outdoor work including fixed garden lighting, pond pumps and outbuildings such as sheds, detached garages and domestic greenhouses. Notifiable work must be certified by self-certification by a registered competent person, third-party certification, or a building control body (paragraph 3.1), with the compliance certificate issued within 30 days (paragraph 3.4). Note that Approved Document P is a source of guidance rather than a ban: non-notifiable work still has to comply with BS 7671.
  8. 8technicalvery strongMinistry of Housing, Communities and Local Government.RN-QD1SFFTable 1.1 sets minimum intermittent extract rates: kitchen with a cooker hood extracting outside 30 l/s, kitchen without one 60 l/s, utility room 30 l/s, bathroom 15 l/s, sanitary accommodation 6 l/s. Extract terminals and fans other than cooker hoods should be as high as practicable and no more than 400mm below the ceiling; a cooker hood should sit between 650mm and 750mm above the hob if the manufacturer gives no figure. Table 1.7 requires background ventilators of at least 8000mm2 equivalent area in habitable rooms and kitchens for a dwelling, 10,000mm2 for a single-storey dwelling. Background ventilators should be at least 1700mm above floor level and at least 500mm from a fan in the same room. On replacement windows, paragraph 3.14 says new windows must carry background ventilators no smaller than the originals, and paragraph 3.15 gives the fallback minimums where the old size is unknown: 8000mm2 habitable rooms, 8000mm2 kitchen, 4000mm2 bathroom. Paragraph 3.32 confirms that replacing an extractor fan or cooker hood on existing cabling is not notifiable.
  9. 9technicalvery strongMinistry of Housing, Communities and Local Government.RN-YAW64MRequirement G3(4) states the hot water supply to any fixed bath must be designed so the water delivered to that bath cannot exceed 48 degrees C; paragraph 3.65 says this is achieved with an in-line blending valve or other temperature control device with a maximum temperature stop, and 3.66 accepts valves to BS EN 1111:1999 or BS EN 1287:1999 that fail safe. G3(3) requires unvented storage vessels to prevent stored water exceeding 100 degrees C and to convey safety discharge somewhere visible and safe. Regulation 36 and Requirement G2 cap potential consumption in a new dwelling at 125 litres per person per day, or the optional 110 litres per person per day where a planning condition specifies it; G2 applies only to dwellings erected or formed by material change of use. Sections G4 sanitary conveniences, G5 bathrooms and G6 food preparation areas set scale of provision.
  10. 10technicalvery strongThe National Archives, guidance.RN-MY6E6ESchedule 2 to the Water Supply (Water Fittings) Regulations 1999, which applies in England and Wales. It caps WC flush volumes and requires backflow prevention on every water system.

  1. BS 6465-2:2017 Sanitary installations. Space recommendations. Code of practice, BSI, accessed 29 September 2026. knowledge.bsigroup.com

  2. Approved Document M, Access to and use of buildings, Volume 1: Dwellings, 2015 edition incorporating 2016 amendments, Ministry of Housing, Communities and Local Government, accessed 14 September 2026. assets.publishing.service.gov.uk

  3. Domestic shower and wet room construction, LABC Warranty, accessed 2 October 2026. labcwarranty.co.uk

  4. Bathrooms and electrics: what you need to know, NICEIC, accessed 29 September 2026. niceic.com

  5. Section 701: Locations containing a bath or shower, The IET, accessed 2 October 2026. electrical.theiet.org

  6. Electrical safety advice for the bathroom, Electrical Safety First, accessed 29 September 2026. electricalsafetyfirst.org.uk

  7. Approved Document P, Electrical safety: Dwellings, 2013 edition incorporating 2010 and 2013 amendments, Ministry of Housing, Communities and Local Government, accessed 14 September 2026. assets.publishing.service.gov.uk

  8. Approved Document F, Ventilation, Volume 1: Dwellings, 2021 edition, Ministry of Housing, Communities and Local Government, accessed 29 September 2026. assets.publishing.service.gov.uk

  9. Approved Document G: Sanitation, hot water safety and water efficiency (2015 edition incorporating 2016 and 2024 amendments), HM Government (GOV.UK), accessed 29 September 2026. assets.publishing.service.gov.uk

  10. The Water Supply (Water Fittings) Regulations 1999, Schedule 2: Requirements for water fittings, The National Archives, accessed 29 September 2026. legislation.gov.uk
