Toilet design has moved on considerably from the basic high-level cistern and vitreous china pan that dominated UK bathrooms for most of the twentieth century. Today you can choose between close-coupled, back-to-wall, wall-hung, and fully concealed systems, each with different installation requirements, cleaning implications, and costs. Layered on top is the rimless vs rimmed distinction, which is now the most important hygiene consideration when choosing any toilet.

The Core Types

Close-Coupled Toilet

The cistern sits directly on top of the pan, connected by a close-coupled link. The unit is entirely freestanding and bolts to the floor. It is one of the most common toilet types in UK homes, straightforward to install, easy to service, and available at every price point.

  • How the flush works: the cistern is accessible by removing the lid; all internal components (fill valve, flush valve, siphon or button flush mechanism) are visible and easy to replace
  • Projection from wall: 620–780 mm depending on pan length
  • Rough-in distance (waste pipe centre from wall): typically 180–200 mm, but varies; always check before ordering

Back-to-Wall Toilet

The pan is designed to fit flush against the wall (or against a furniture unit), concealing the cistern behind either a false wall (duct boxing) or within a purpose-built floor-standing or wall-mounted furniture unit. The pan and cistern are separate units.

  • Appearance: cleaner than close-coupled; no visible cistern; gap between pan and wall is closed off
  • Projection from wall: 500–600 mm (shorter than close-coupled because the cistern is hidden)
  • Servicing: access panel in the duct boxing or furniture unit is required to reach the cistern; this must be built in and is a planning consideration during installation
  • Best for: bathrooms where clean lines and reduced visual bulk are important without the full commitment to a wall-hung solution

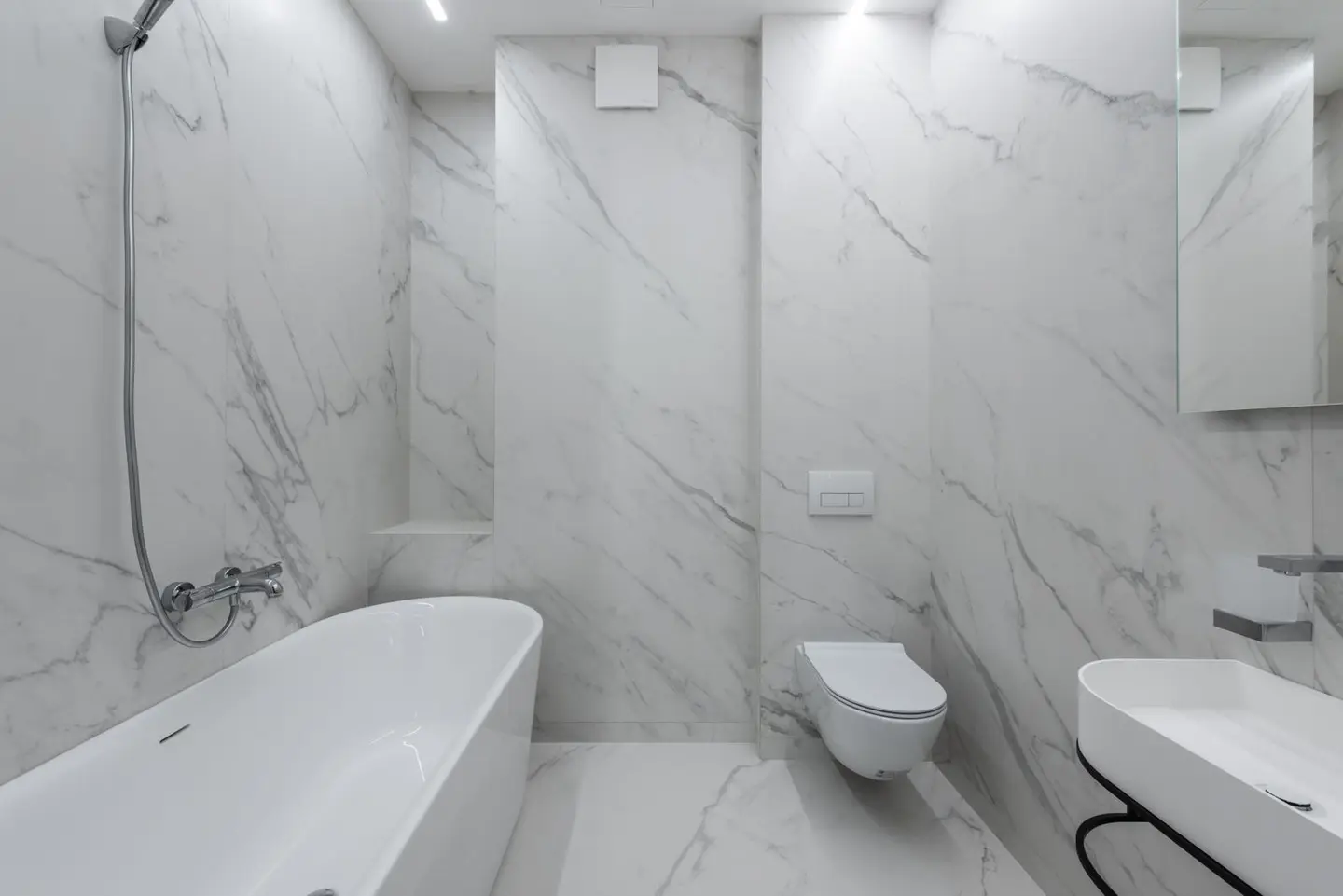

Wall-Hung (Floating) Toilet

The pan is wall-fixed and floor-clear. The cistern is concealed within the wall in a steel mounting frame (carrier frame or in-wall cistern unit). The flush plate sits flush with the wall finish.

  • Appearance: maximally minimal; floor is completely clear
  • Height adjustment: the pan mounting height can be set during frame installation, a significant benefit for accessible bathrooms or for taller occupants
  • Wall requirement: the carrier frame takes the weight of the pan and the user, so it must be fixed as its maker specifies; frames are made for both solid walls and stud walls, but a stud-wall installation needs a frame or brackets designed for it1
  • Frame-to-finish timeline: the frame must be installed at first-fix stage (before plastering and tiling)
  • Servicing: the concealed cistern is accessible via the flush plate or a dedicated access hatch; fill valves and flush mechanisms may require a plumber
  • Projection from wall (to front of pan): 460–530 mm, less than any floor-standing type

High-Level Cistern

The cistern is fixed high on the wall and connected to the pan below by a flush pipe. Traditional in Victorian and Edwardian restorations. Not sold widely for new builds.

Rimless vs Traditional Rimmed Pans

This is the most important hygiene distinction in modern toilet selection. Traditional WC pans have a rim, a channel under the lip of the bowl through which flush water flows. That rim is hard to clean effectively and can harbour bacteria and limescale deposits.

Rimless (or rim-free) pans replace the under-rim channel with directed jets that wash the bowl surface directly. There is no hidden channel to clean.

  • Building Regulations do not mandate rimless pans for domestic use, but they are widely recommended and increasingly common in new suites
  • Rimless pans cost roughly the same as rimmed equivalents, it is a design feature, not a premium option at most mid-range price points

Recommendation: always specify rimless unless there is a specific reason not to (e.g., matching an existing suite where the rimmed pan remains in good condition).

Cost Breakdown

Toilet typePan + cistern (unit cost)Installation (plumber)Frame cost (wall-hung)Total typical range
Close-coupled standard£80–£2502£150–£250N/A£230–£500
Close-coupled premium£250–£500£150–£250N/A£400–£750
Back-to-wall (pan only)£150–£400£200–£350£100–£300 (cistern + boxing)£450–£1,050
Wall-hung pan + flush plate£200–£600£250–£500£130–£400 (carrier frame and cistern)£580–£1,500
High-level cistern suite£200–£600£200–£350N/A£400–£950

A wall-mounted WC frame with a dual-flush concealed cistern is bought separately from the pan, and frame prices vary widely between basic trade-counter sets and branded systems. At Screwfix, for example, a basic support frame with an integral 6/3-litre dual-flush cistern costs £199.99.3 A Grohe Bau rimless wall-hung pan with a soft-close seat, cistern sold separately, costs £199 there.4 Prices above are for supply and installation of the WC only. They do not include floor or wall tiling, boxing-in works beyond the cistern, or access panel joinery.

Water Consumption and Flush Performance

Under the Water Supply (Water Fittings) Regulations 1999, a WC installed today must not give a single flush of more than 6 litres, and on a dual-flush cistern the smaller flush must not exceed two-thirds of the full flush.5 Older 7.5-litre and 9-litre cisterns are still found in existing installations, and a cistern fitted before 1 July 1999 may be replaced with one that delivers a similar volume.5

Lower-volume dual-flush cisterns (4 litres or less for the full flush) are also sold and cut water use further, but the pan must be designed for the lower volume to clear properly. In a low-pressure supply, check the fill valve’s minimum operating pressure, which affects how quickly the cistern refills.

Seat Types and Compatibility

The seat is a separate purchase from the pan in most cases. Key considerations:

  • Soft-close seats: the lid and seat lower slowly without slamming. Now essentially standard in mid-range to premium bathrooms; considered best practice where children or elderly users may slam the seat
  • Quick-release seats: the seat detaches from its fixings for cleaning around the hinge area, important for hygiene in family bathrooms
  • Wrap-over vs standard: some seats wrap fully over the front of the pan (wrap-over/thermoset designs); confirm compatibility with your specific pan model as seat shapes vary between manufacturers
  • Top-fix vs bottom-fix: most modern pans use top-fix seat fittings (bolts accessed from above the pan rim); bottom-fix requires access underneath

Installation Considerations

Waste pipe position: The soil pipe connection is either P-trap (horizontal connection through wall) or S-trap (vertical connection through floor). Before ordering any toilet, measure the rough-in distance (centre of soil pipe outlet from finished wall face) and confirm whether the soil pipe exits through wall or floor. Many standard UK close-coupled toilets accommodate rough-in distances of roughly 150–220 mm, but check the maker’s figure.

Wall-hung frame requirements: Makers test their frames to carry a heavy static load; Geberit, for example, says its frames and pans can support up to 400 kg when installed correctly.6 Frame installation typically requires exposed wall access; factor this into bathroom sequencing (frames go in at first fix, pans go in at second fix after tiling and decorating).

Building Regulations: Any new or replacement WC connection to the soil stack must comply with Part H of the Building Regulations (drainage). In Approved Document H, an unventilated branch pipe from a WC is normally 100 mm nominal (110 mm plastic pipe in practice) and must fall between 18 mm and 90 mm per metre, roughly 1:55 to 1:11.7 Replacing a WC with one that uses no more water is not notifiable, provided the work does not touch underground drainage or alter the water supply or above-ground drainage in a way that could affect anyone’s health or safety.8 Adding a WC in a new position is not covered by that exemption, and all the work must still comply technically.

Ventilation: Approved Document F sets a minimum intermittent extract rate of 6 litres/second for sanitary accommodation, meaning a WC compartment with no bath or shower.9 For a WC, the guidance allows purge ventilation, normally an openable window of adequate size, as an alternative to the extract fan.9

Choosing the Right Toilet for Your Bathroom

SituationBest toilet type
Standard bathroom or en suite refurbClose-coupled rimless, soft-close seat
Small cloakroom or WCBack-to-wall with flat-panel duct boxing
Contemporary open-plan bathroomWall-hung with concealed frame
Period propertyClose-coupled or high-level if heritage look is desired
Accessible / mobility bathroomWall-hung (adjustable height)
Rental propertyClose-coupled, simplest to maintain and replace

The most common mistake when selecting a toilet is choosing on appearance alone without confirming the rough-in distance, waste pipe orientation, and available wall structure. A wall-hung WC in a stud-wall bathroom needs a frame designed for stud walls, or extra framing to carry it, so budget for this at the design stage.

The rules in this note are those that apply in England. Scotland, Wales and Northern Ireland have their own building standards and permitted development rights.
